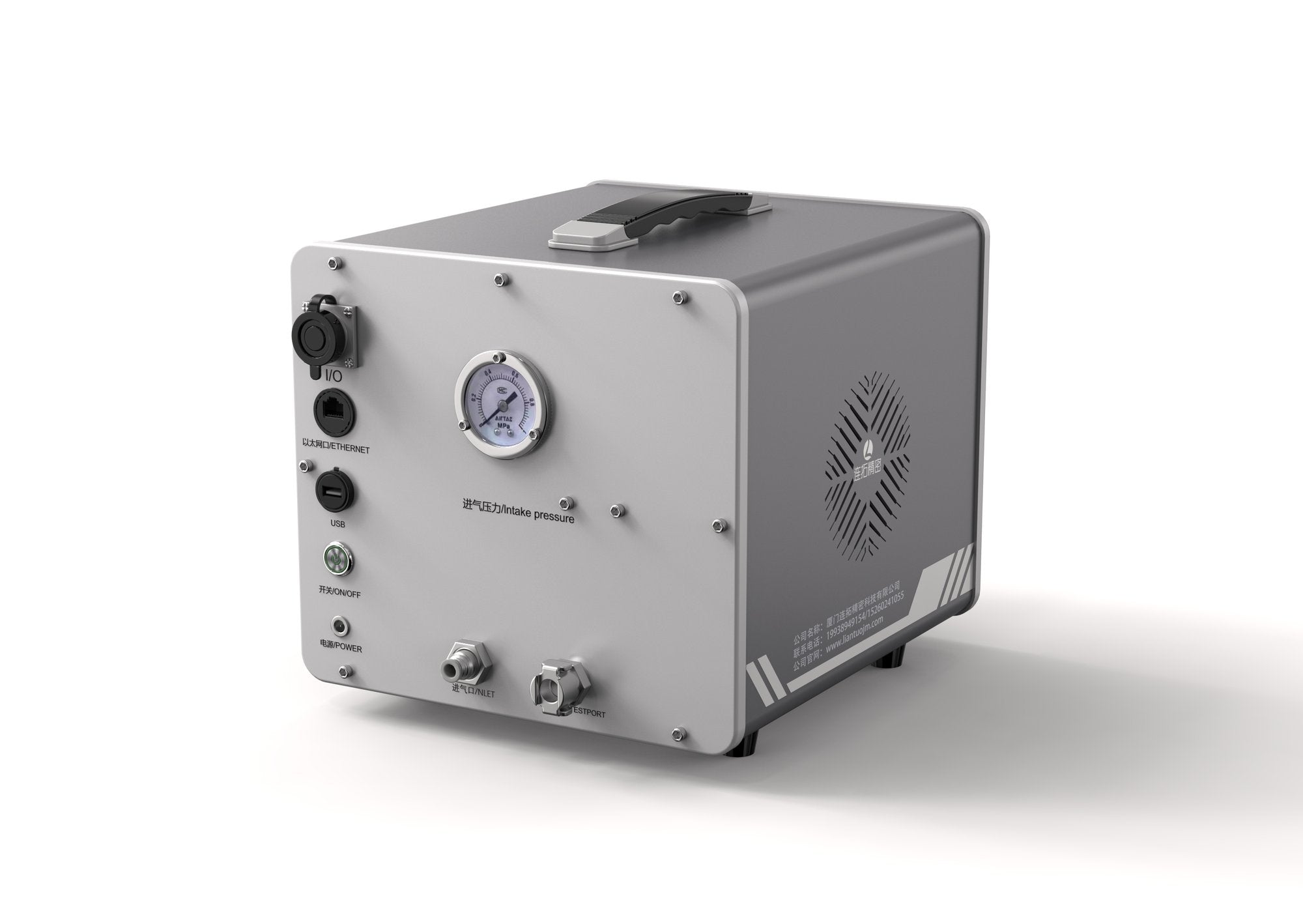

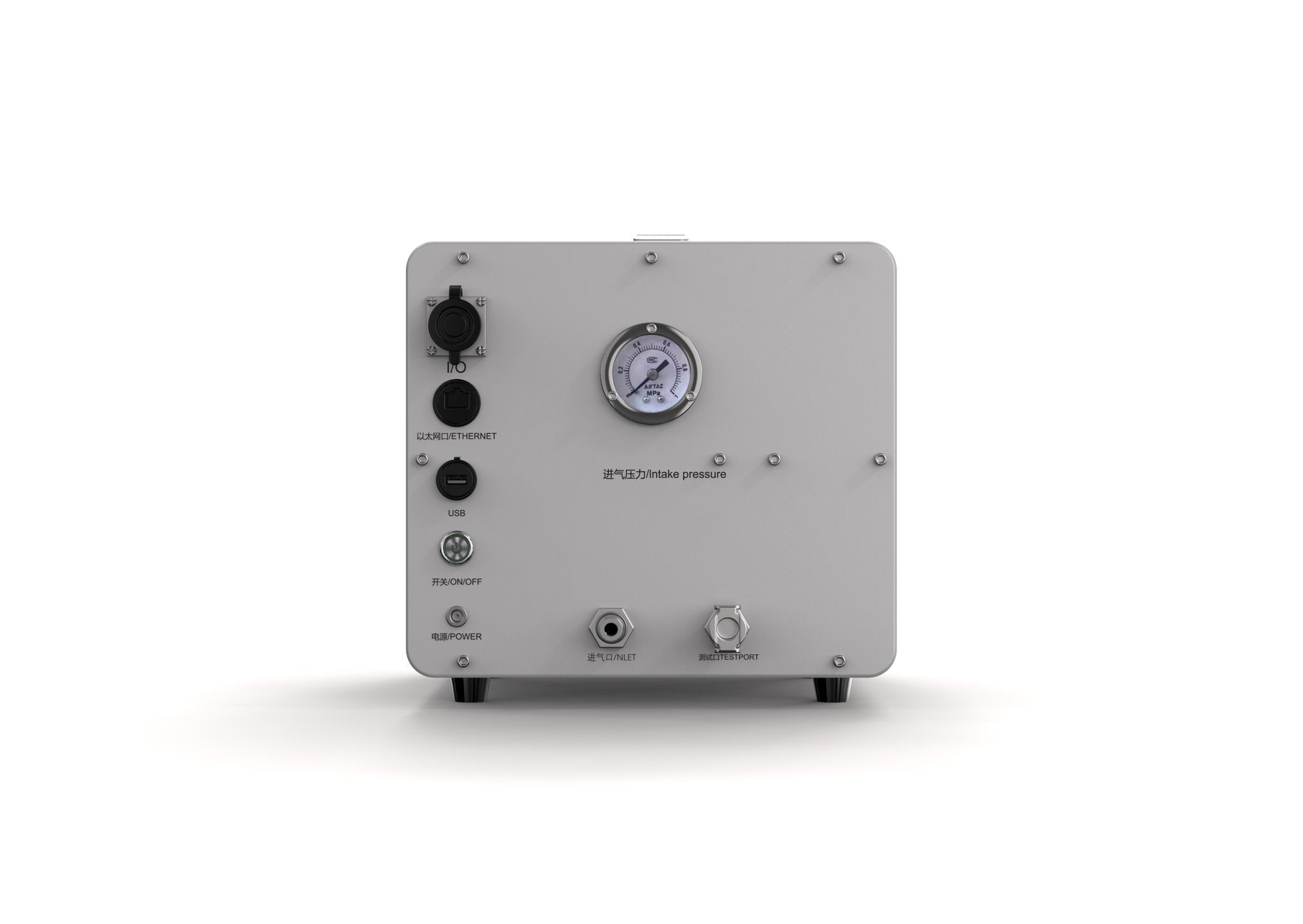

LG Series - Automatic Pressure Regulating Leak Tester

The LG Series is Figurtech's auto-regulating direct pressure leak tester — designed for applications that require precise, programmable pressure control without manual intervention. Where the LY Series uses a fixed pressure set by a manual regulator, the LG uses digital closed-loop control to reach and hold any target pressure within its range automatically.

How It Works

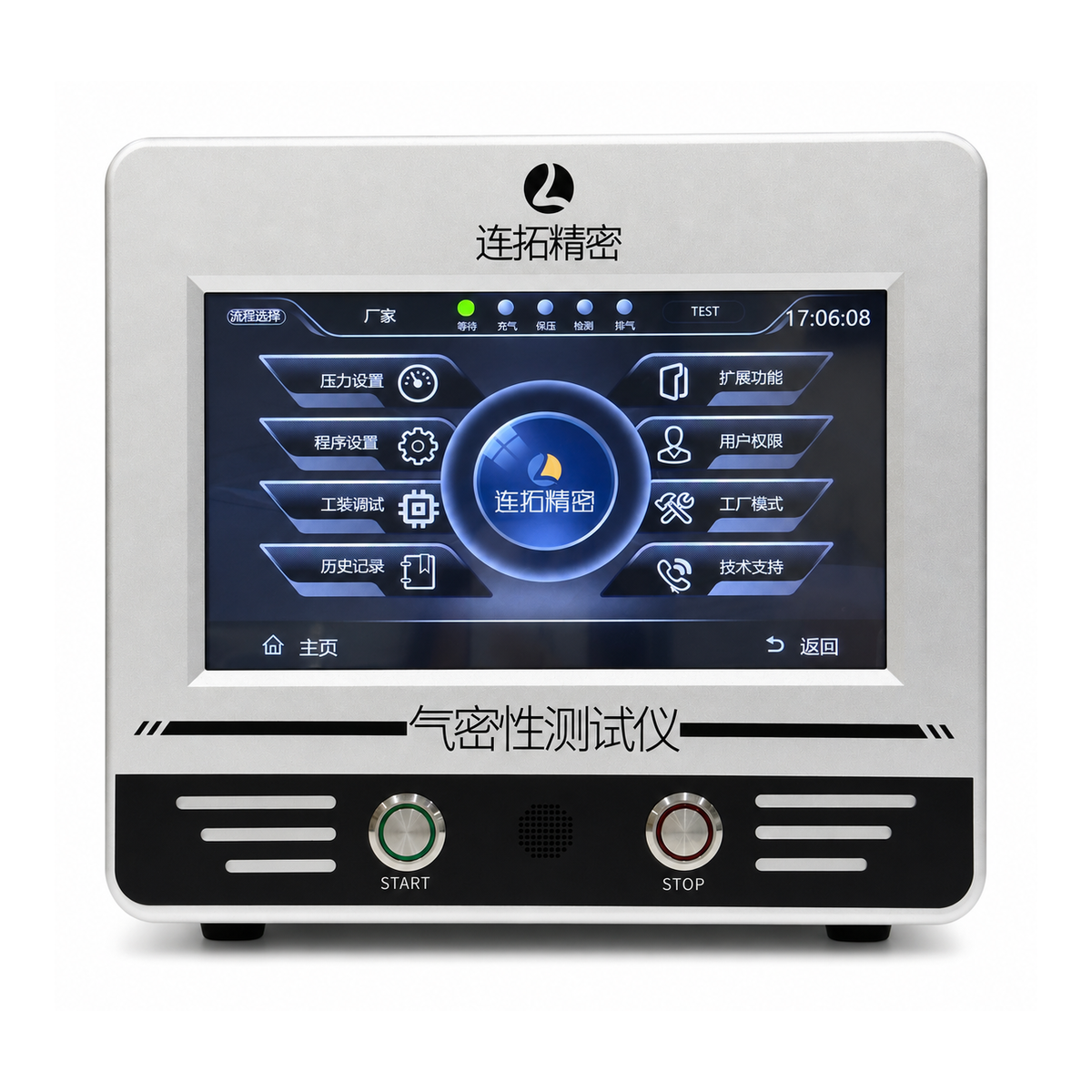

The LG Series uses an internal electronic proportional valve to regulate test pressure in real time. The operator programs the target pressure, ramp rate, and hold tolerance into one of up to 99 stored test programs. The instrument charges the test cavity, holds at the programmed pressure within ±0.1% accuracy, stabilizes, measures pressure decay, and exhausts — all without operator adjustment. Multiple pressure programs can be stored and recalled by barcode scan, PLC signal, or front-panel selection.

Key Specifications

Typical Applications

• Large industrial sensors and transmitters: Tested at 10–1000 kPa with ±0.1 kPa acceptance window — requires stable, precise pressure delivery across a wide range
• Multi-model production lines: Different component models require different test pressures; LG switches programs automatically on barcode scan, eliminating manual re-adjustment between changeovers
• Multi-stage pressure testing: Components requiring sequential low-pressure, mid-pressure, and high-pressure validation in one automated cycle
• R&D and validation labs: Wide pressure range and programmable control make LG suitable for characterization and design validation testing

Why LG?

• No manual knobs: Eliminates operator-to-operator variability in pressure setting — critical on multi-shift lines
• Instant changeover: Switching from a 50 kPa program to a 400 kPa program takes one barcode scan — no warm-up, no recalibration
• Wide range in one unit: Single LG instrument covers vacuum to 800 kPa — replaces multiple fixed-range instruments for mixed product lines

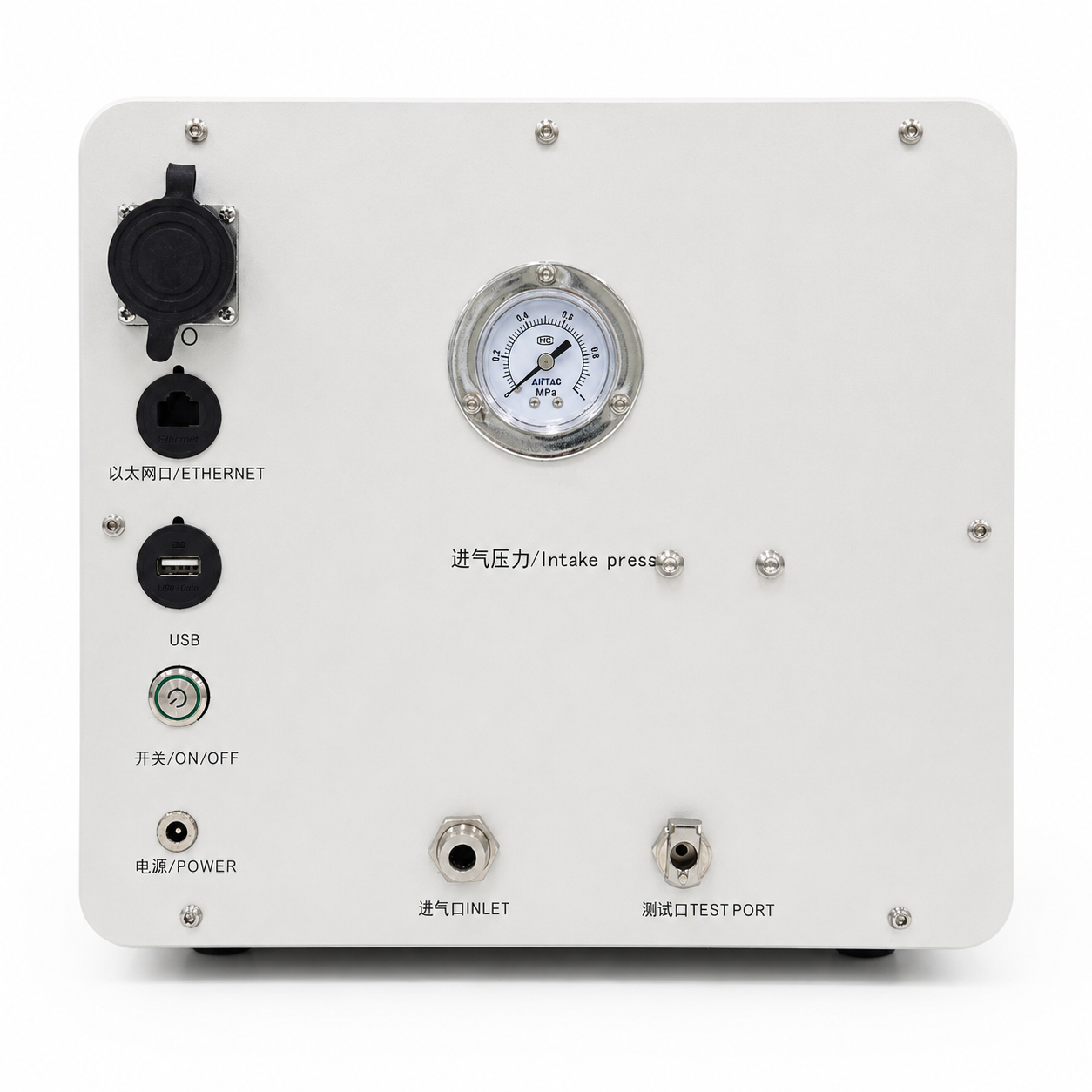

• Full integration: RS-232/485, USB, Ethernet, PLC I/O, MES upload — same connectivity suite as all Figurtech series

The LG Series is recommended when test pressure varies significantly between product models, or when precise pressure delivery is required at pressures where manual regulators introduce unacceptable variability. Contact us to discuss your pressure range and program count requirements.
