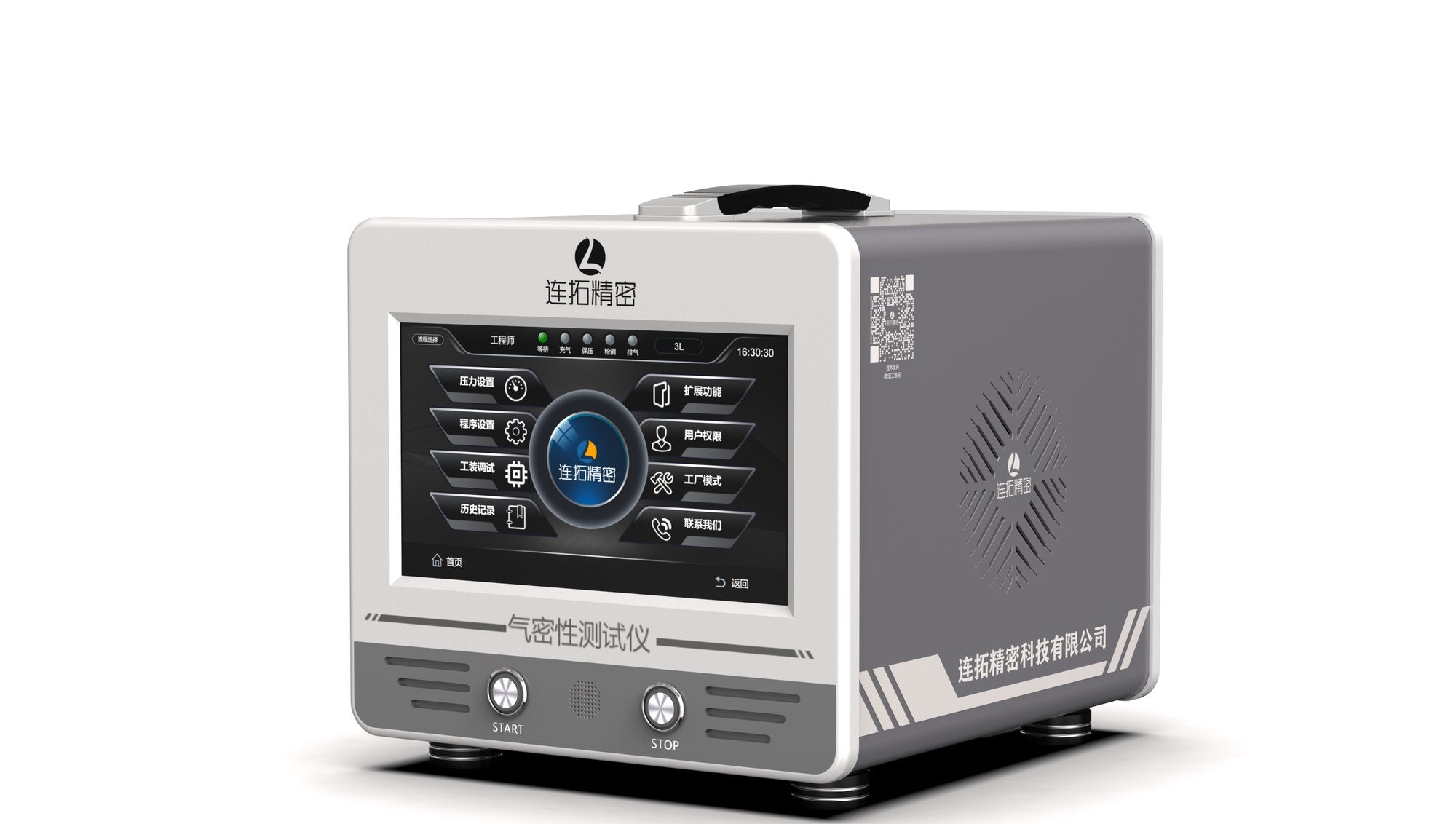

The LY Series is Figurtech's most widely deployed direct pressure leak tester — a workhorse instrument for production lines that require fast, reliable airtightness validation on sealed assemblies, housings, and enclosures.
How It Works
The LY uses positive-pressure direct detection: the test cavity is pressurized, isolated, and held while an internal sensor measures pressure decay over a defined dwell time. A four-stage automatic cycle (Pressurize → Stabilize → Measure → Exhaust) delivers consistent, repeatable results without operator intervention. On-board temperature drift compensation maintains accuracy across shifts and ambient fluctuations.
Key Specifications
| Parameter | Specification |
|---|---|
| Test pressure range | −90 kPa to 1200 kPa |
| Maximum resolution | 0.1 Pa |
| Sensor accuracy | 0.1% FS |
| Power supply | AC 220 V ±15%, 50 Hz, 60 W |
| Air supply pressure | 0.4 – 0.8 MPa |
| Dimensions | 320 × 284 × 300 mm |
| Weight | 8 kg |
| Operating temperature | 0 – 50 °C |

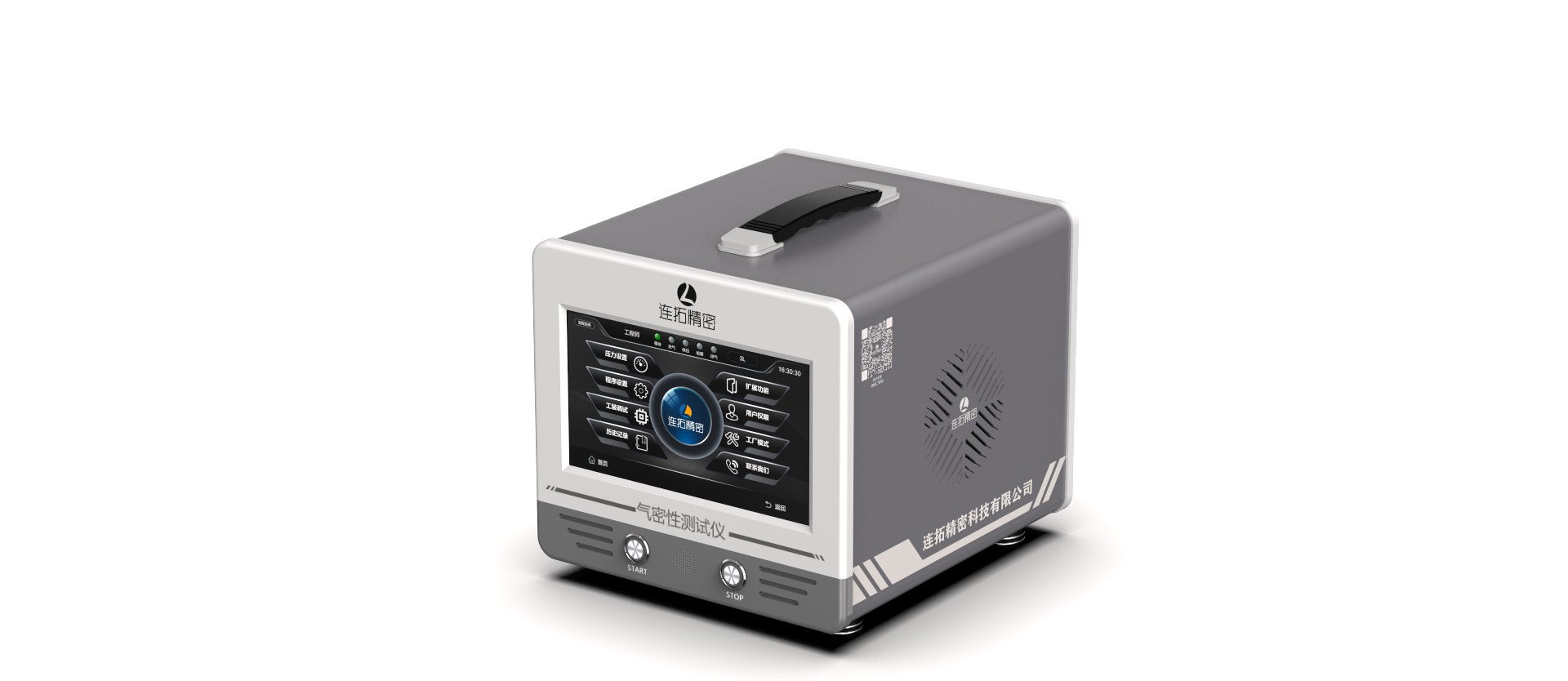

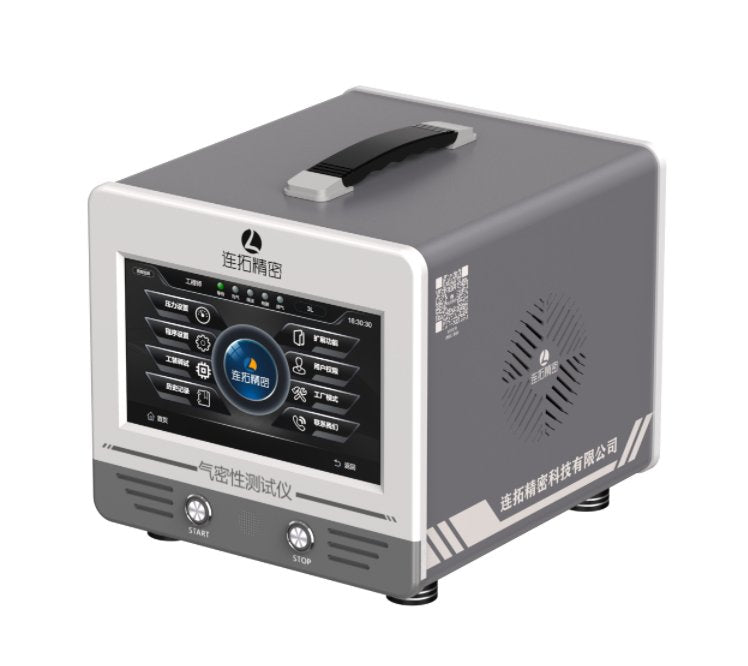

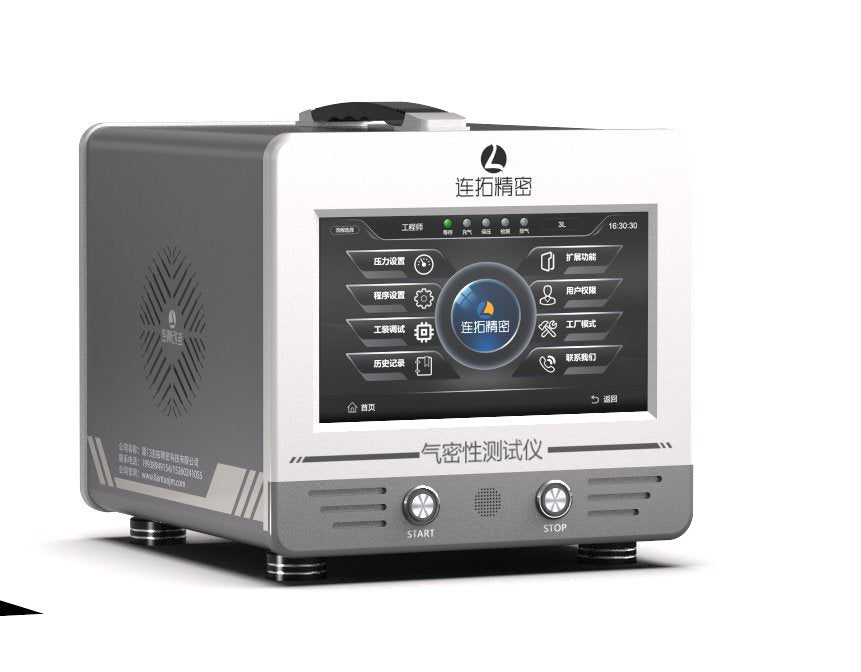

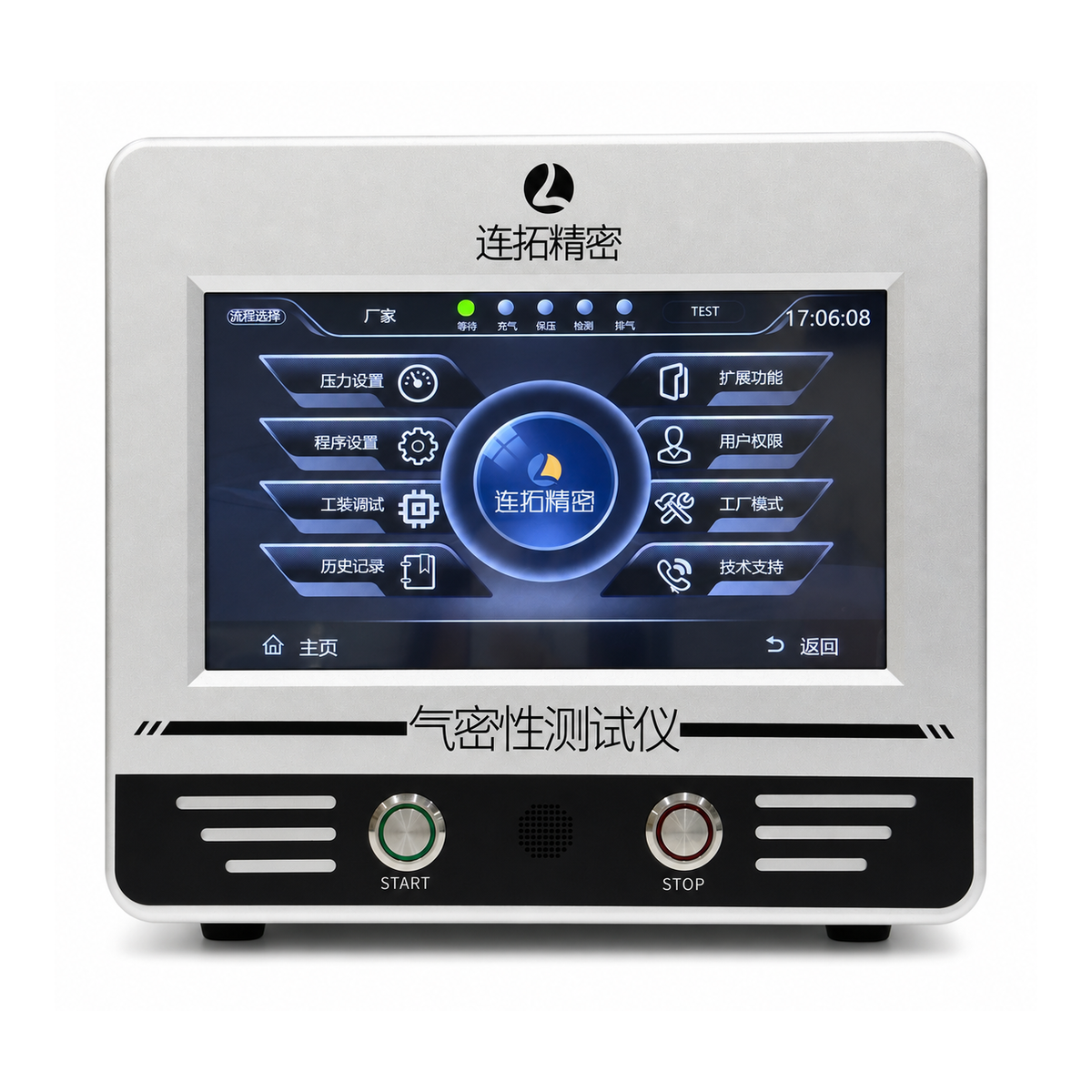

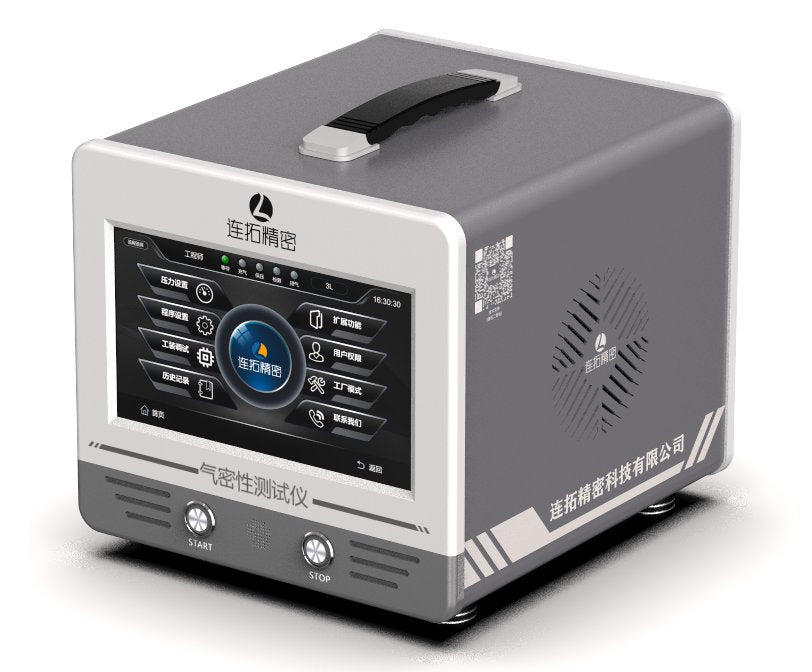

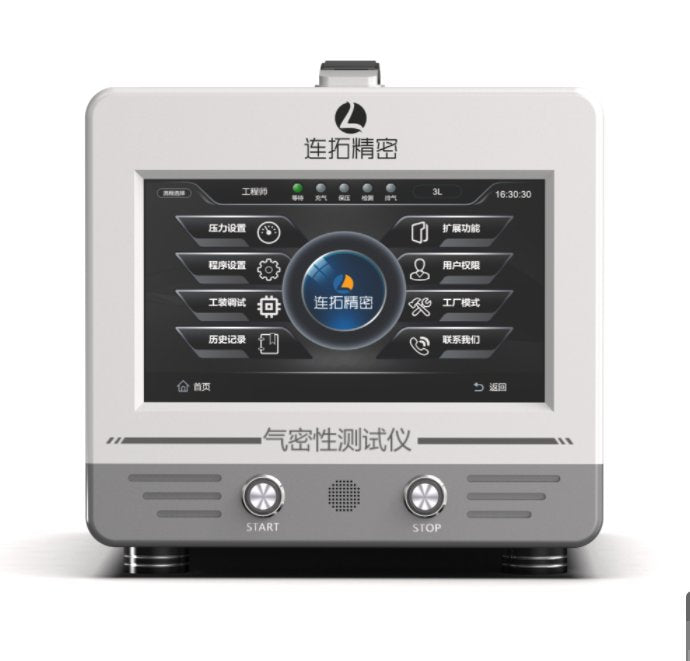

| Display | 7-inch color touchscreen · 4-stage auto test cycle |

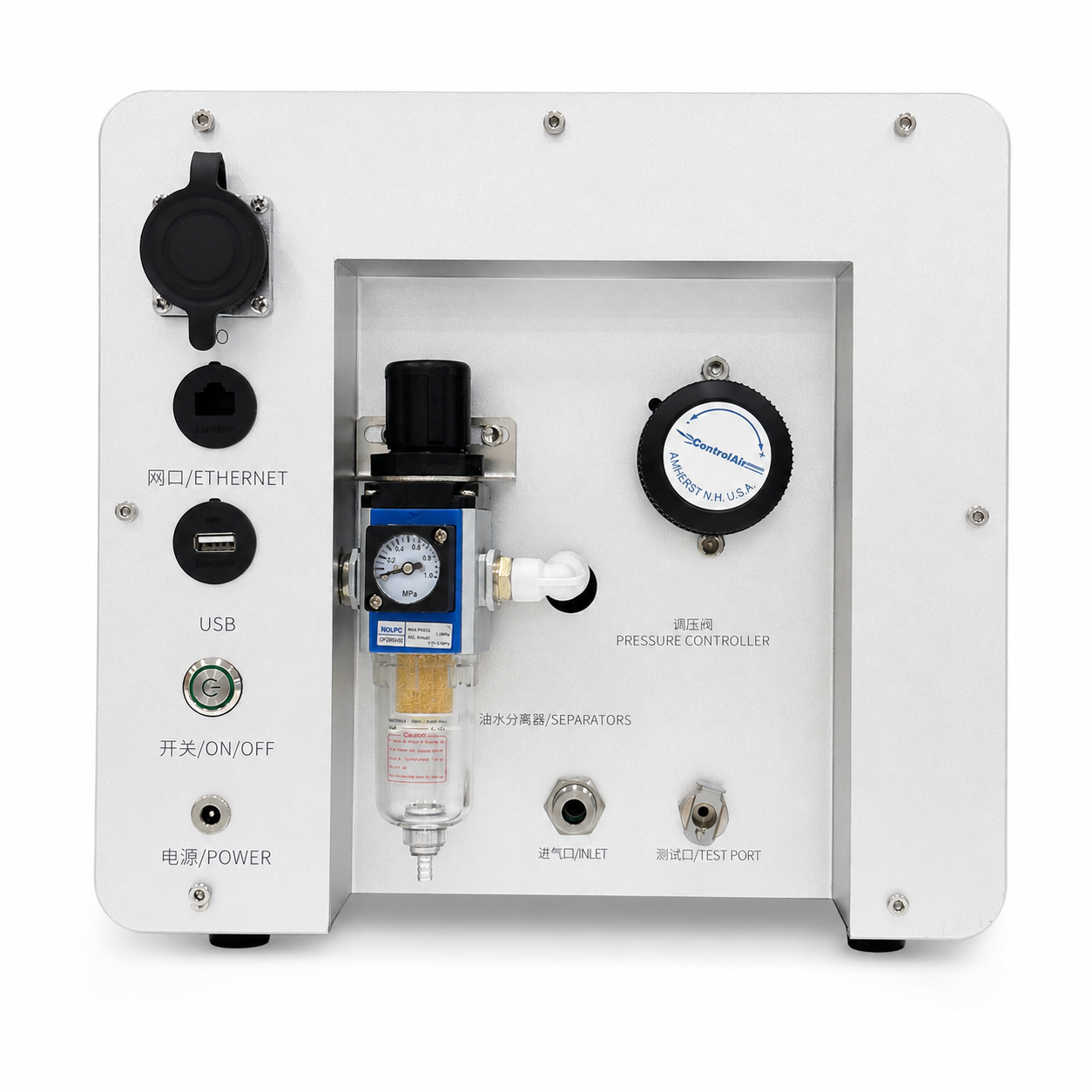

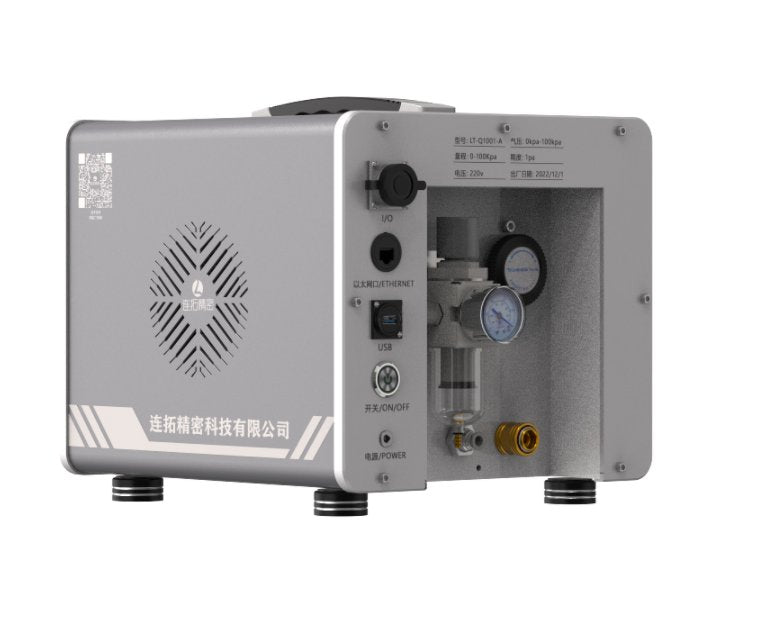

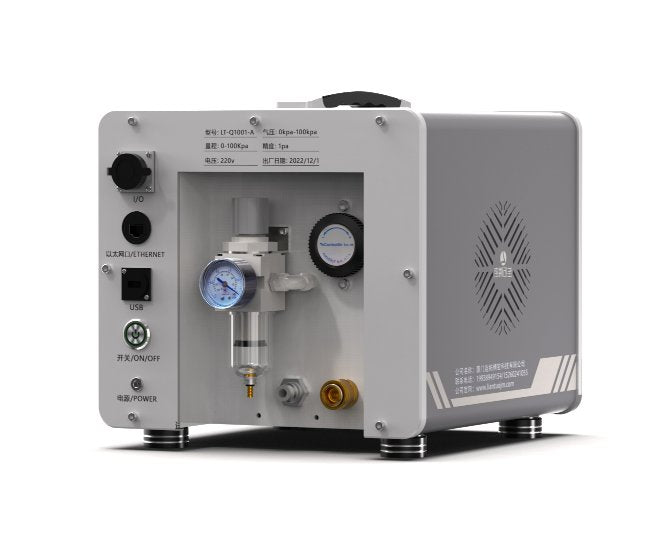

| Communication | RS-232/485, USB, Ethernet, PLC I/O |
| Cycle time | Configurable; application-dependent (typical production cycle ≤ 20 s) |
| Operating humidity | ≤ 95% RH (non-condensing) |
| Certifications | CE Marked · ISO 9001:2015 · National High-Tech Enterprise |
Model Selection
| Model | Full-scale range | Positive test range | Negative test range |
|---|---|---|---|
| LY-M-V20 | 20 kPa | 0 – 20 kPa | — |
| LY-M-V200 | 200 kPa | 3 – 200 kPa | −50 to −1 kPa |
| LY-M-V500 | 500 kPa | 5 – 700 kPa | −90 to −1 kPa |
| LY-M-V1000 | 1000 kPa | 5 – 1200 kPa | −90 to −1 kPa |
Typical Applications

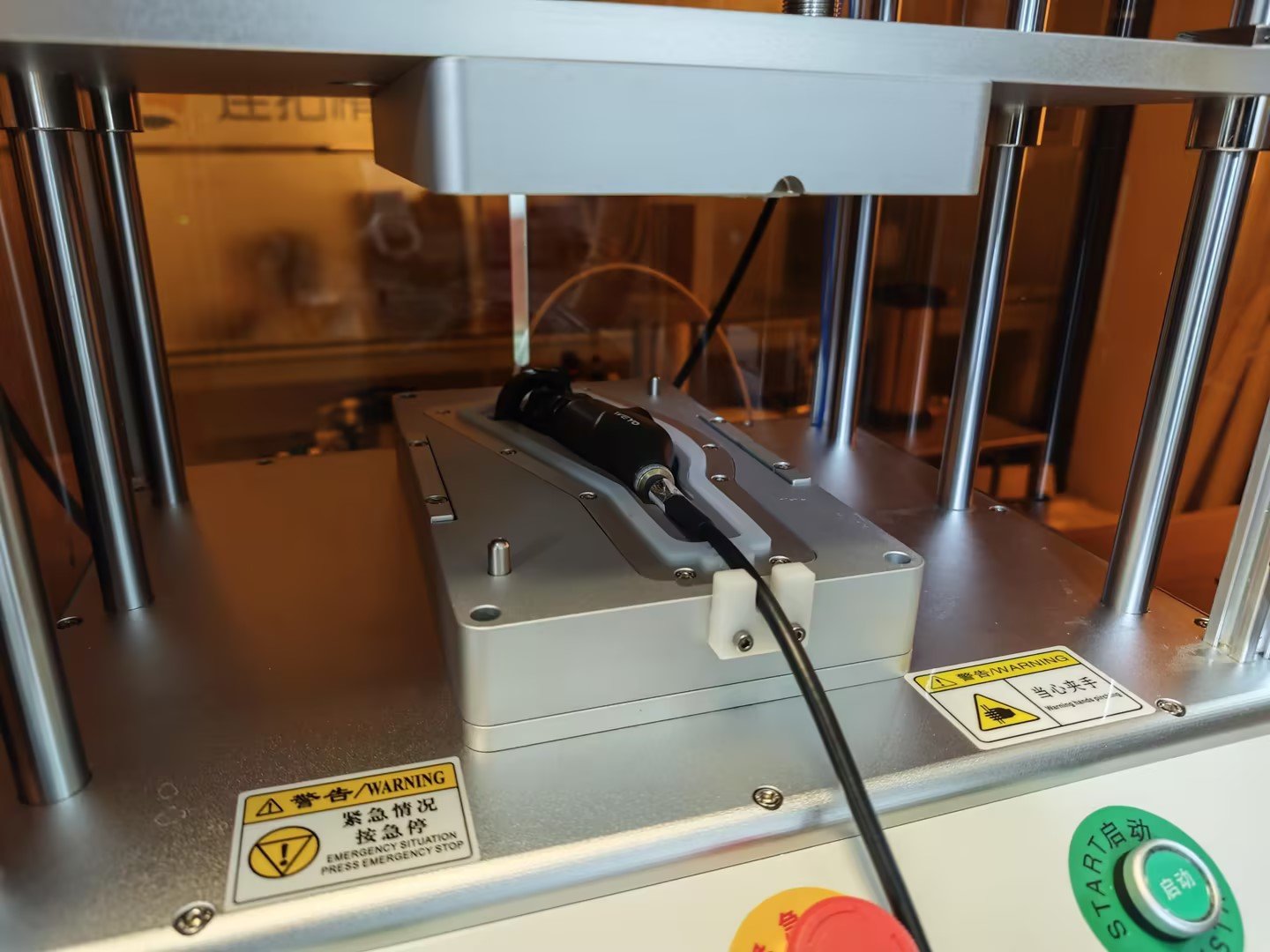

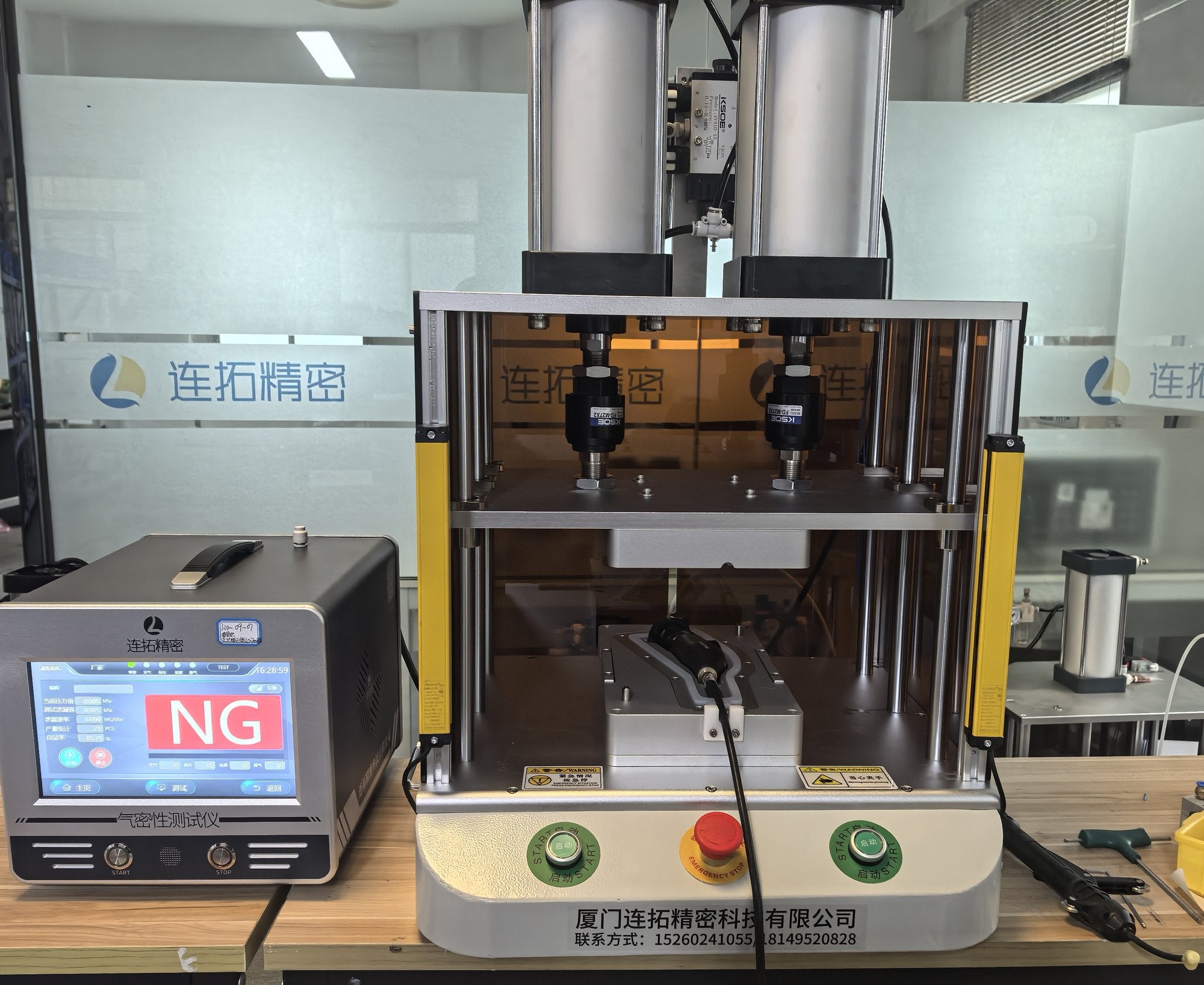

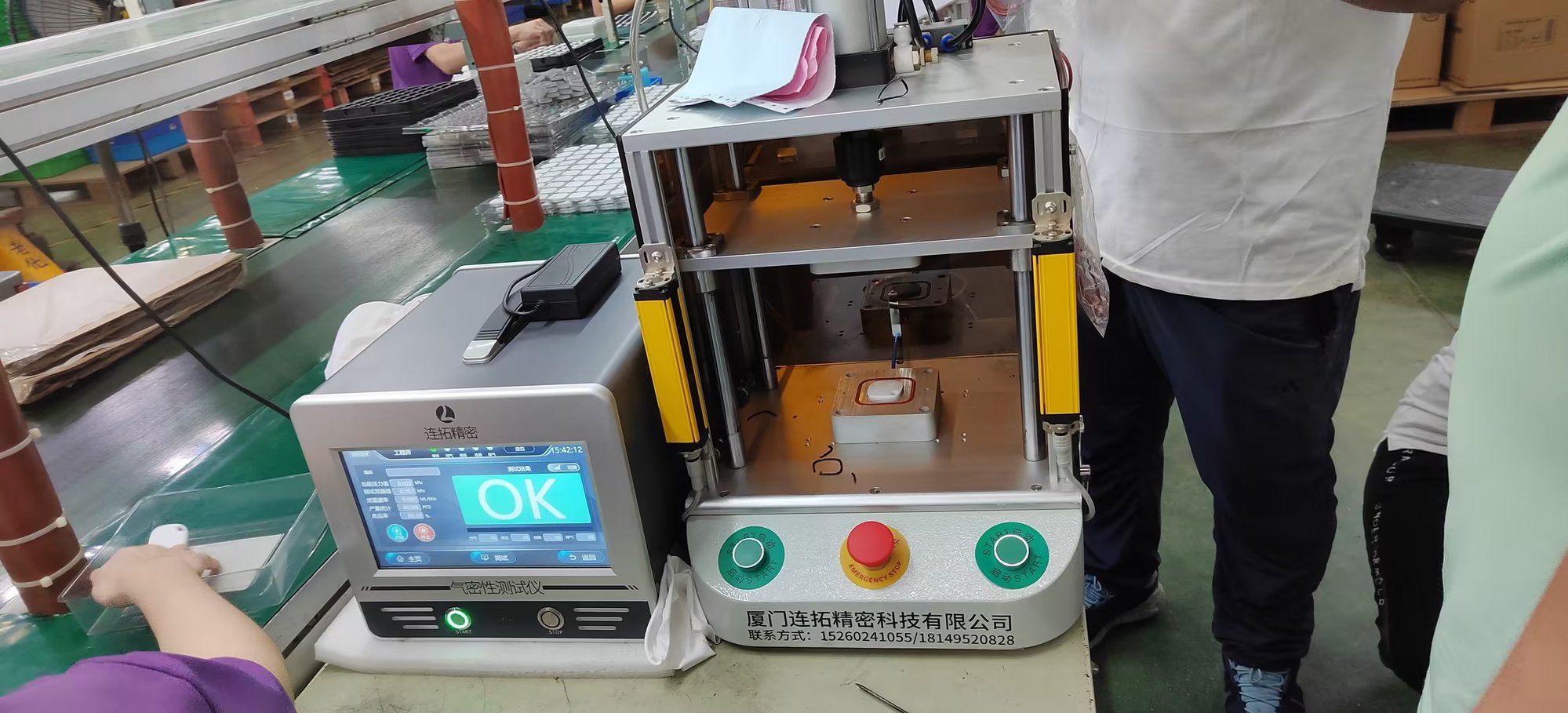

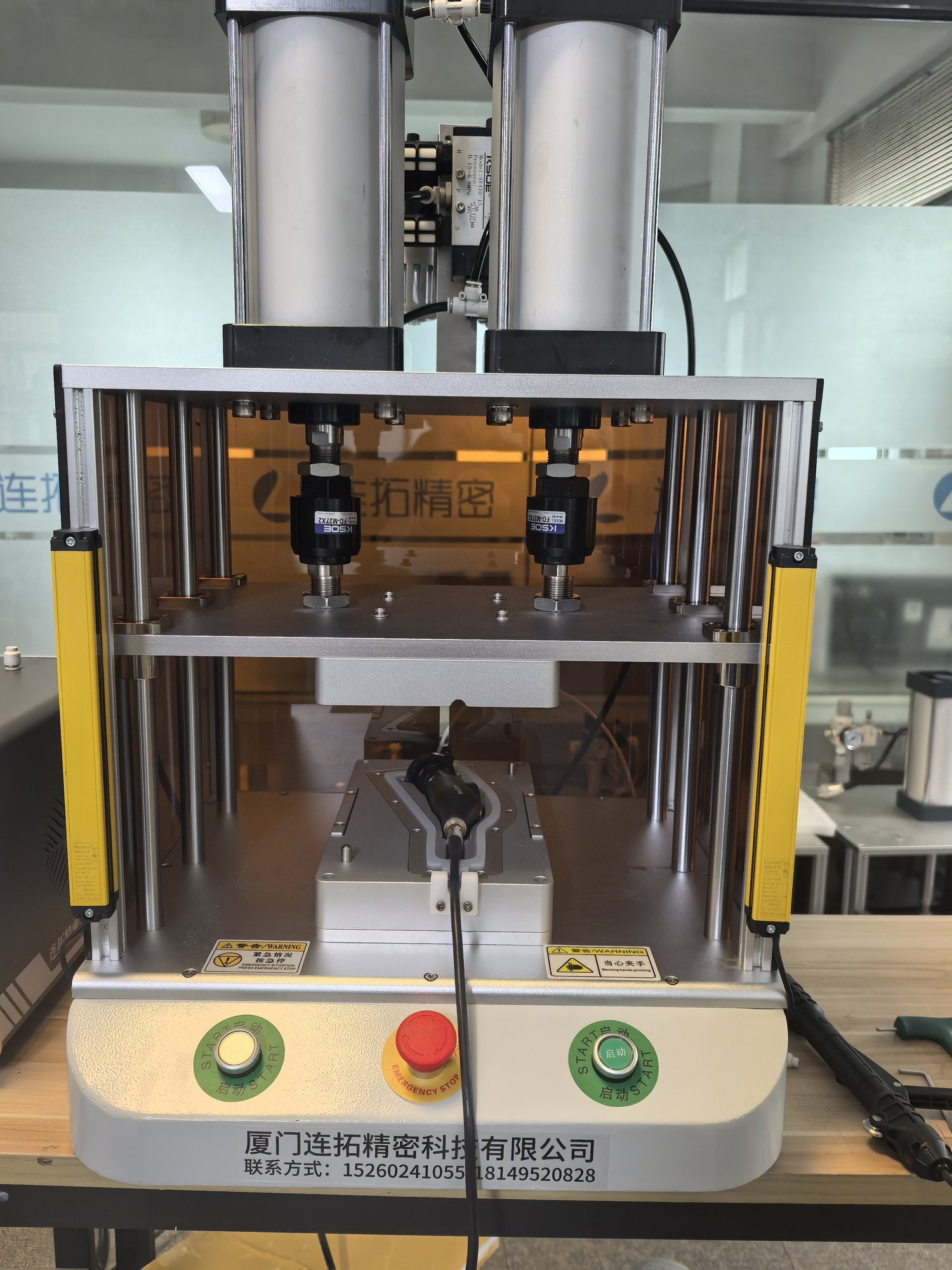

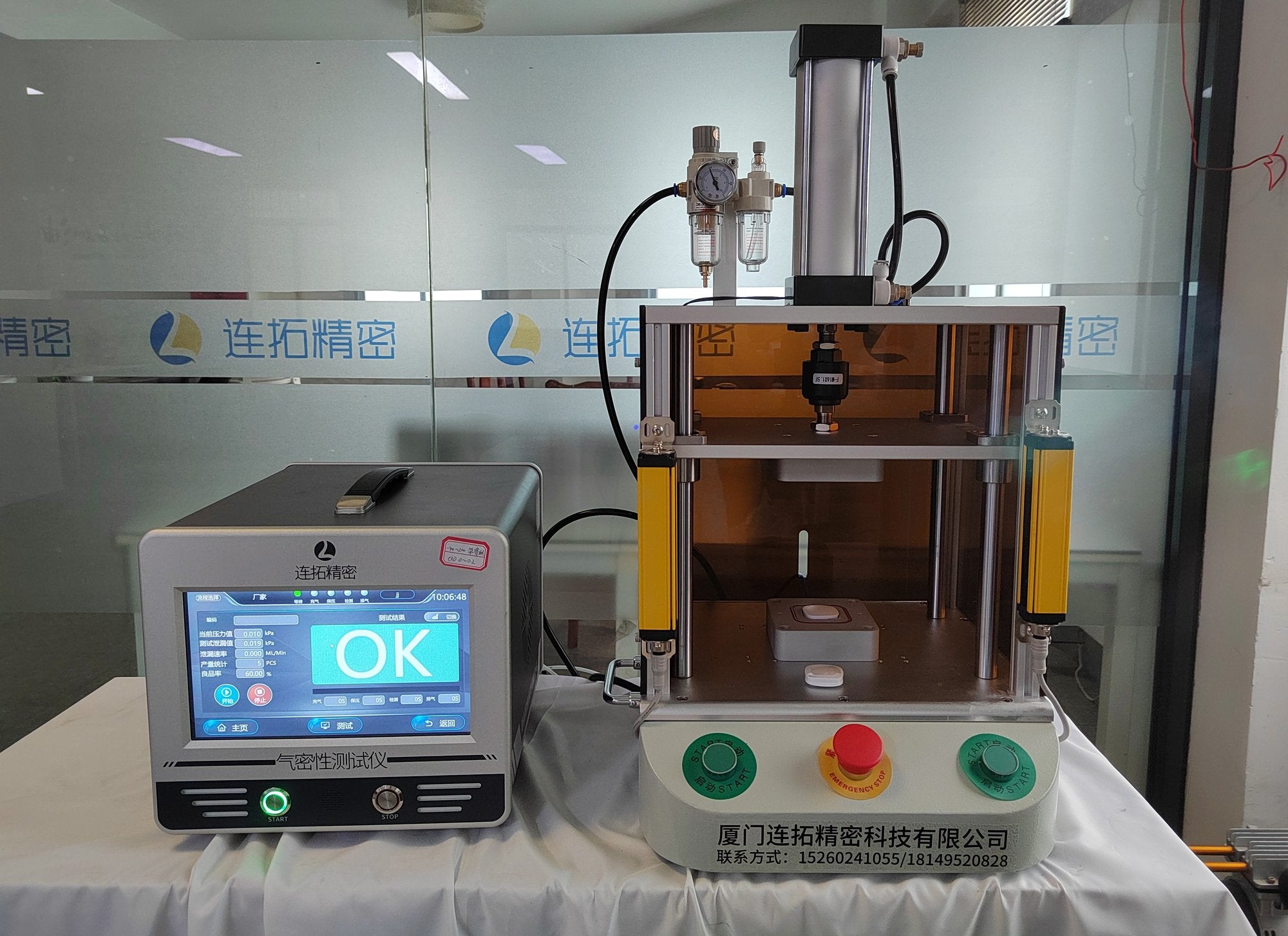

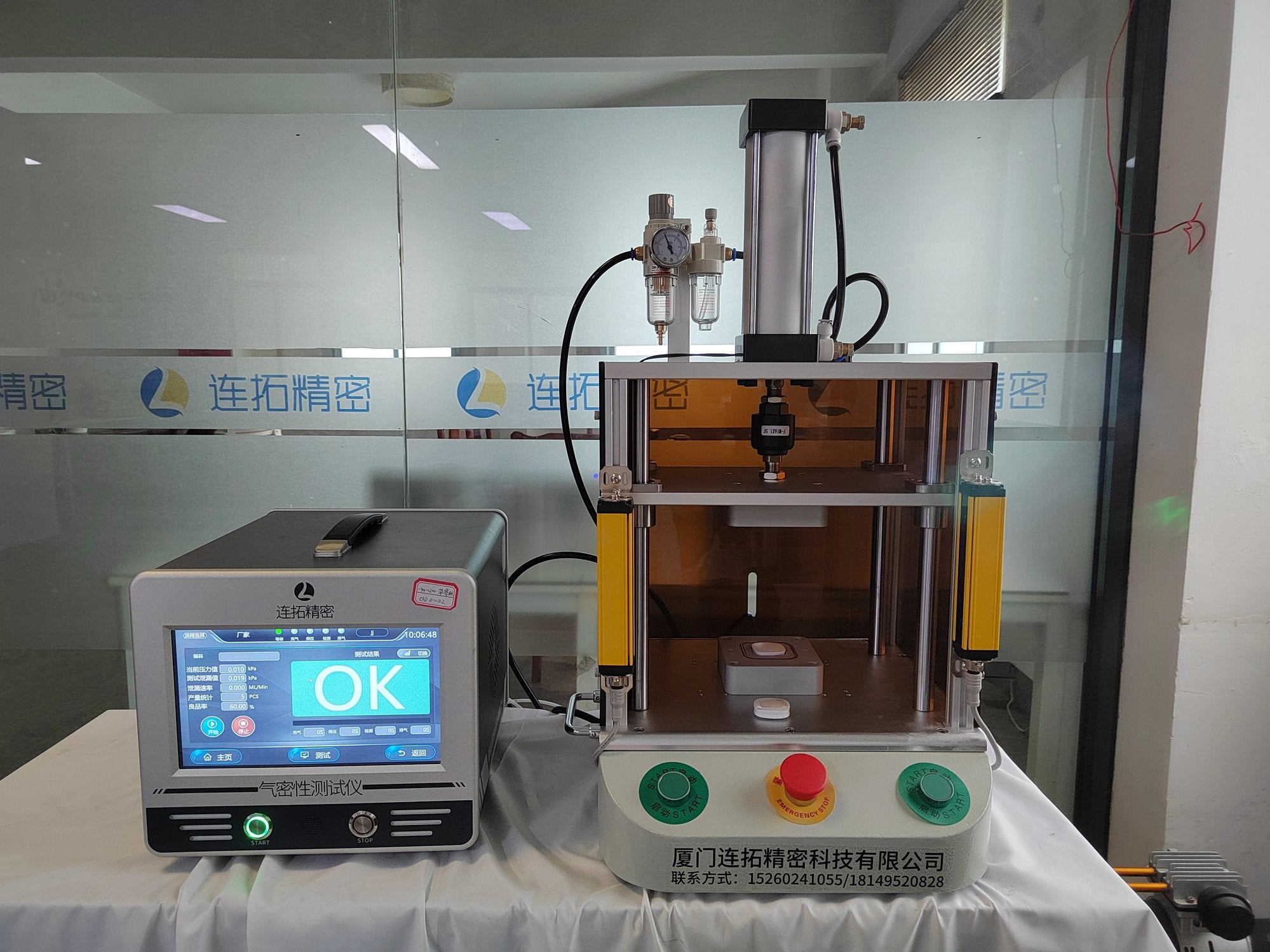

- EV battery tray and liquid-cooling plate sealing validation

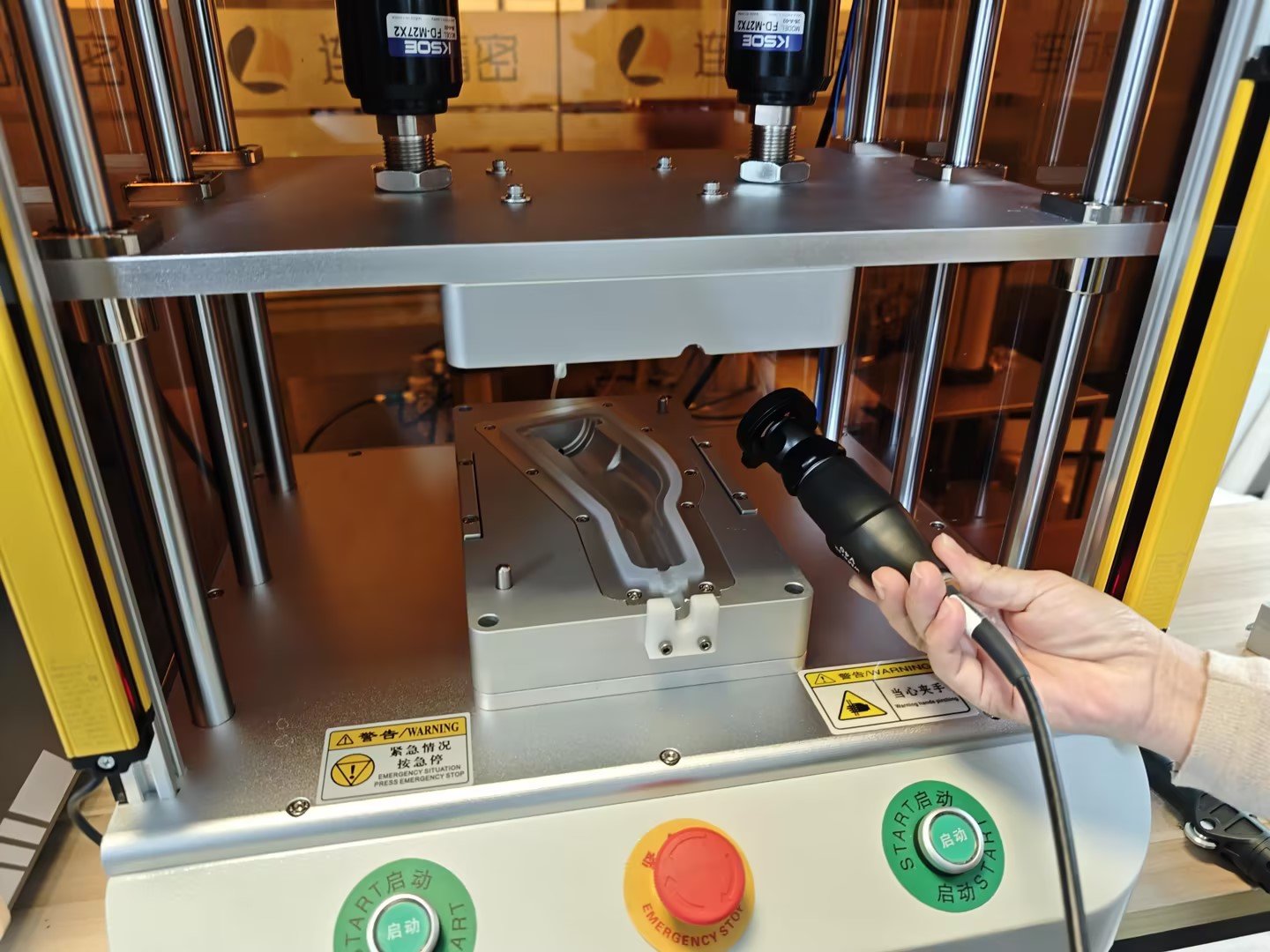

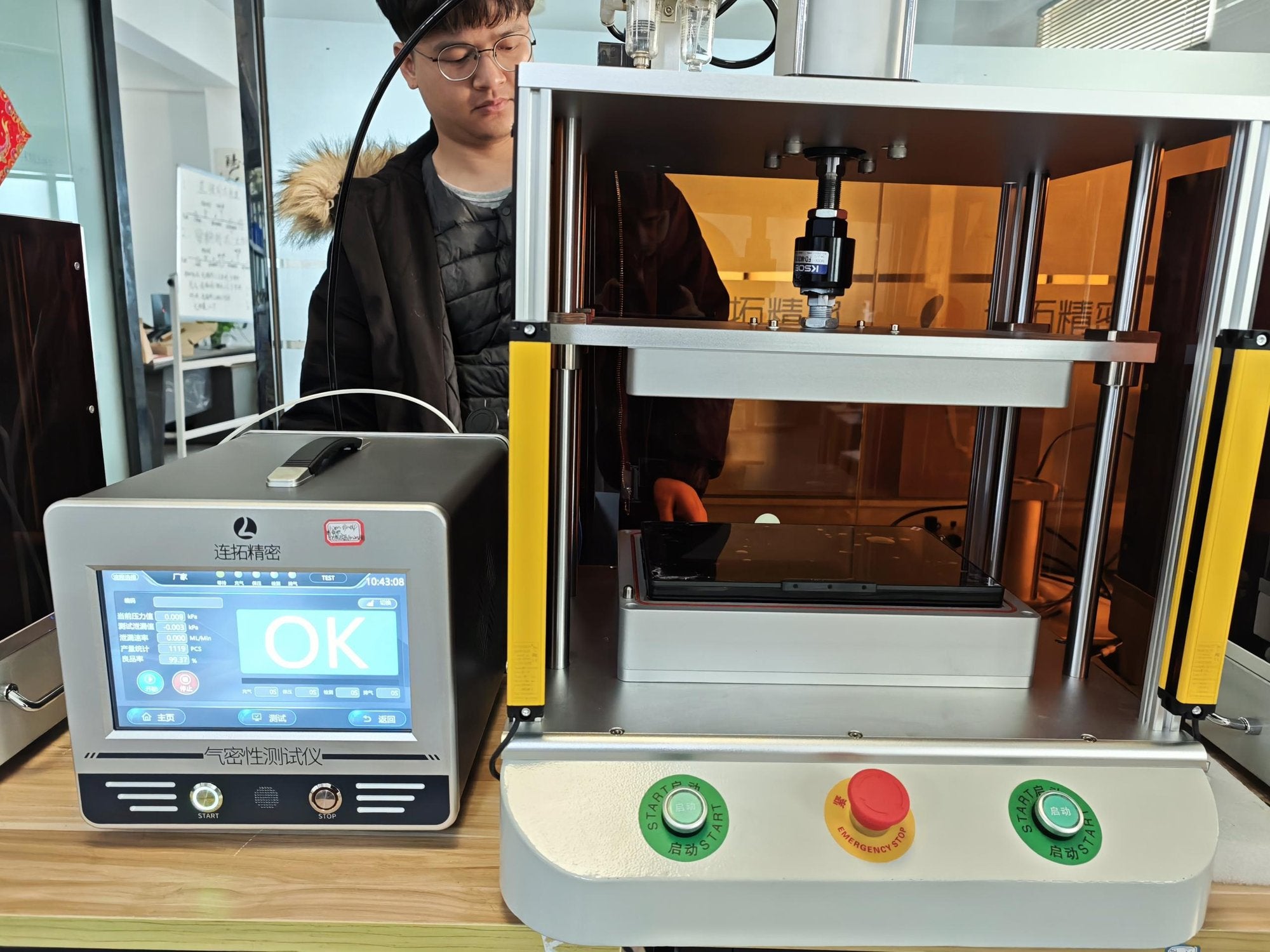

- Automotive sensor housings and on-board electronics enclosures

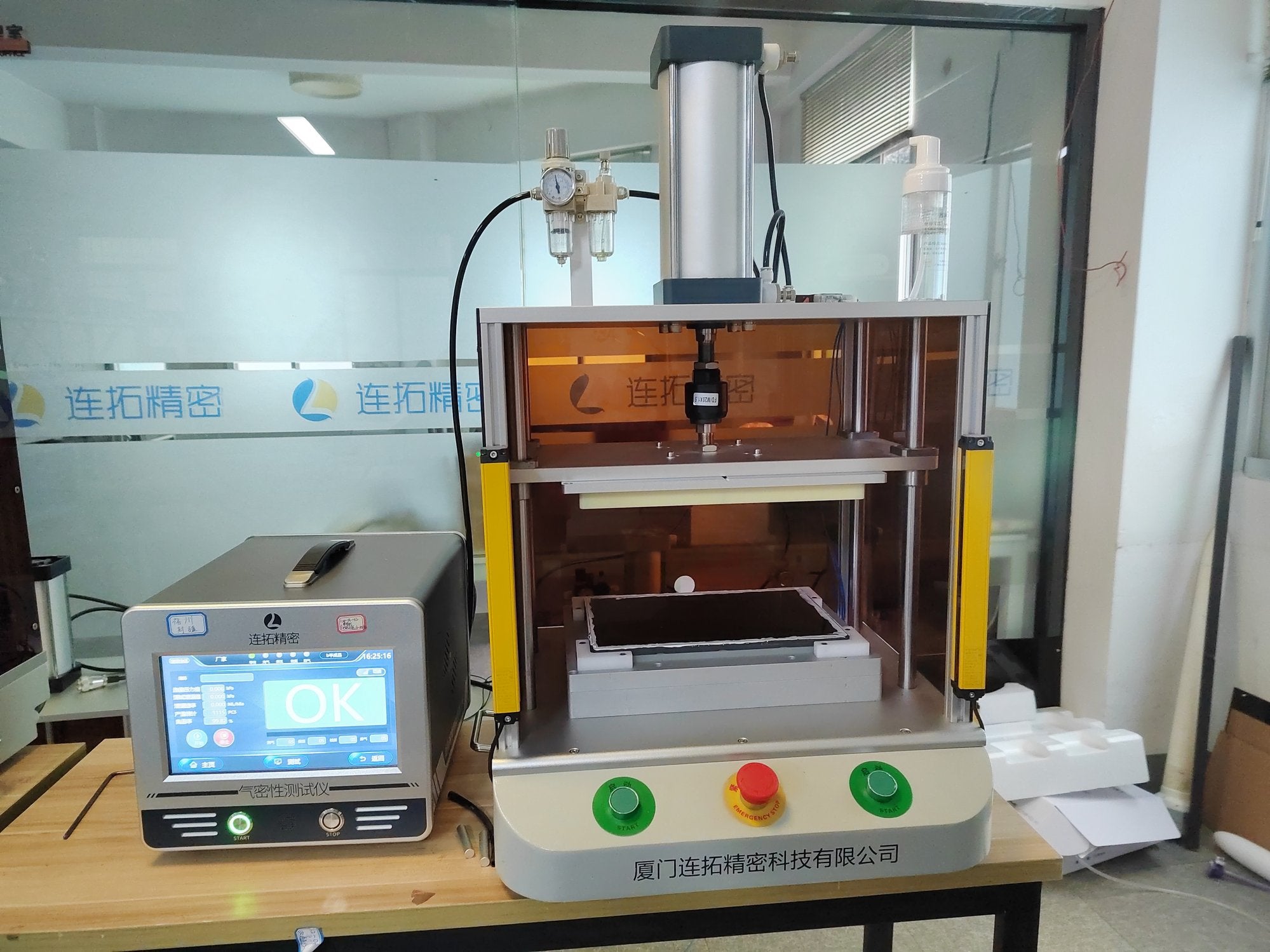

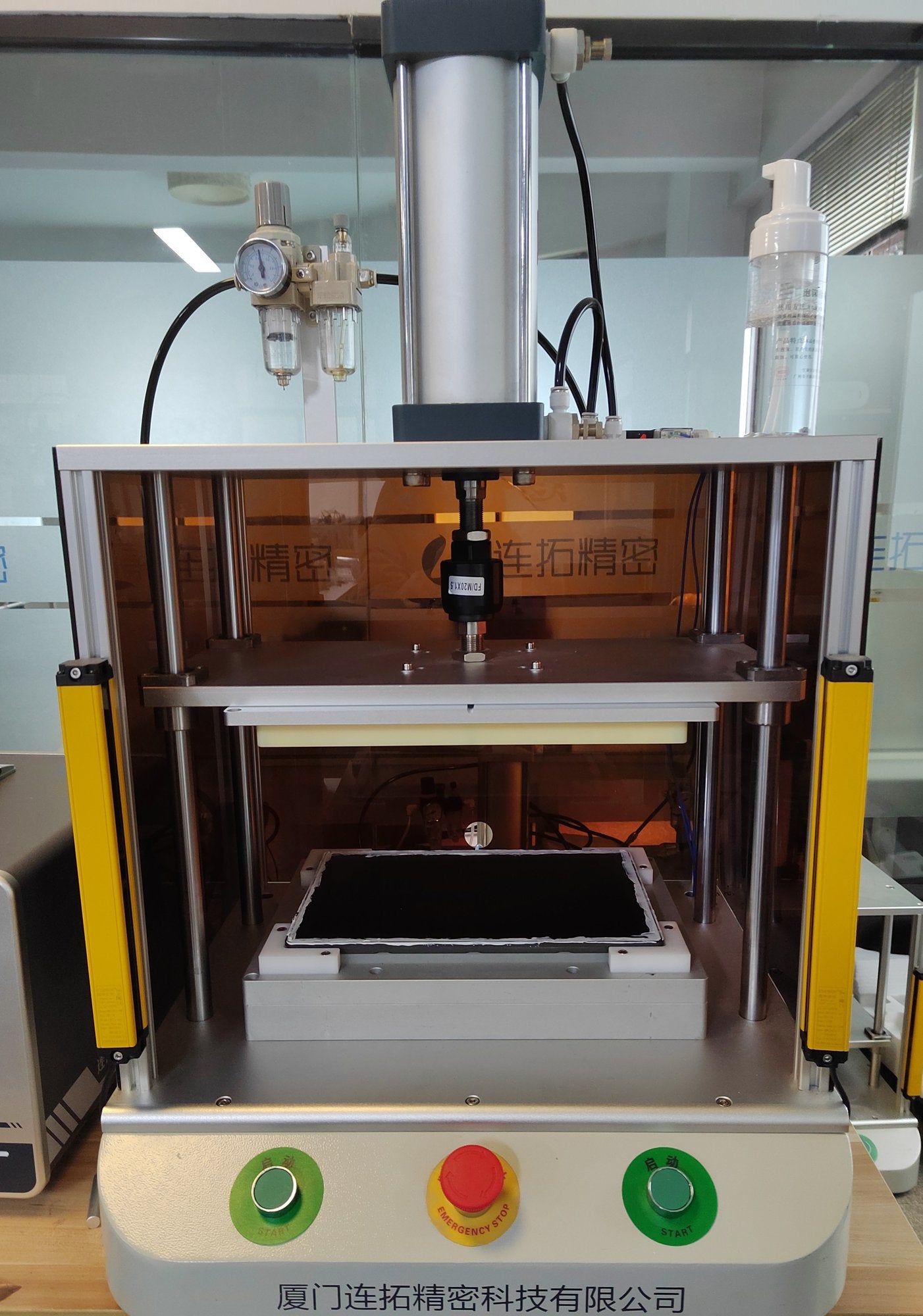

- Consumer electronics waterproof (IP67/IP68) inline testing
- Water-cooled heat sinks and thermal management assemblies
- Any sealed assembly requiring positive or negative pressure airtightness verification
Why LY?
- Production-ready automation: RS-232/485, USB, and Ethernet I/O for PLC and MES integration
- Temperature stability: On-board compensation eliminates drift without external conditioning
- Wide pressure range: A single V1000 unit covers from low-pressure electronics to high-pressure automotive parts
- Fast cycle time: Configurable stabilization and measurement windows support ≤ 20 s cycles
Custom fixture tooling, standard leak holes, and calibration certificates are available. Contact us to discuss your specific leak specification and cycle time requirement.
Volume pricing: 2nd unit 10% off · 3rd unit 20% off — contact us for a quote. Fixtures, tooling, and accessories are quoted per project.
