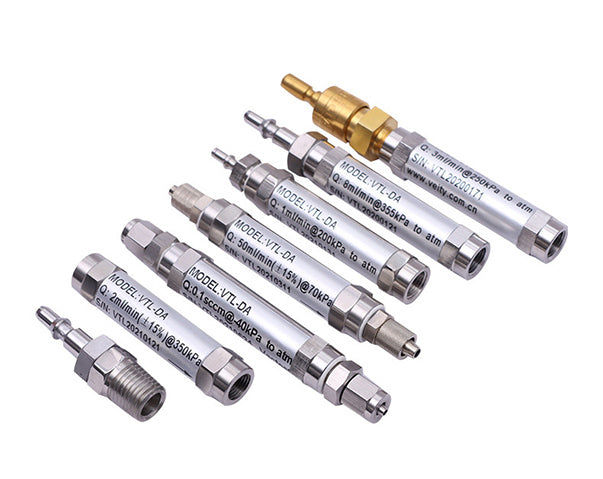

A Standard Leak Hole (Standard Calibration Leak) is a precision-drilled or micro-channel reference component used to verify the measurement accuracy and sensitivity of your leak test instruments. Without a calibrated leak reference, you cannot confirm that your tester is detecting what it claims to detect.
What It Does
Each Standard Leak Hole produces a stable, known, traceable leak rate under defined pressure conditions. When connected to your leak tester, it allows you to verify that the instrument responds correctly to a specific leak value — confirming the instrument is within calibration and that your test program thresholds are set correctly. This is a mandatory step in ISO- and IATF-compliant test line validation.
Types Available
| Type | Construction | Typical Use |
|---|---|---|
| Micro-channel capillary | Precisely drawn glass or metal capillary | Very low leak rates, medical and precision electronics |
| Metal-flatten type | Controlled deformation of metal tube | Mid-range leak rates, automotive and industrial parts |
| Laser-drilled | Laser-ablated orifice in metal plate | High-precision, high-repeatability reference leaks |
Specifications
| Parameter | Specification |
|---|---|
| Leak rate | Customized to your specification (e.g., 0.5 ml/min, 5 ml/min, sccm equivalent) |
| Accuracy | ±5% of nominal value |
| Calibration certificate | Third-party traceable calibration certificate included |
| Connection | Standard 1/8 NPT or customized port |
| Traceability | Fully traceable to national measurement standards |
When You Need a Standard Leak Hole
- Initial instrument setup: Confirm your tester detects at the required sensitivity before production begins
- Periodic calibration checks: Validate instrument performance at defined intervals (daily, shift-start, or per quality plan)
- Process validation: Required documentation for PPAP, IATF 16949, ISO 13485, and similar quality programs
- Threshold setting: Physically verify that your NG threshold actually catches the target leak rate
- Cross-site consistency: Ensure multiple test stations or plants are measuring to the same standard
Why Figurtech Standard Leak Holes?
- Third-party certified: Every unit ships with a traceable calibration certificate — ready for audit documentation
- Custom leak rates: Specify exactly the leak value your process requires — not limited to catalog values
- Matched to your instruments: Designed and validated to work with LY, LD, LF, LG, LM, and LE series testers
Specify your required leak rate (ml/min or sccm), test pressure, and connection type when ordering. Custom leak rates and connection geometries are available.
